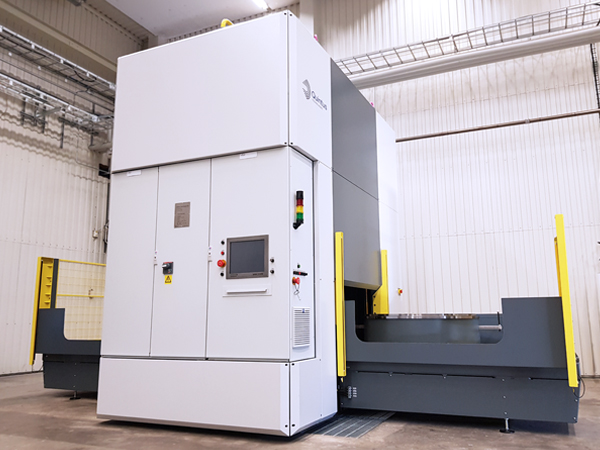

Quintus Press QFM1.1-800



  • Form almost any kind of sheet metal, at thicknesses from 0.1 up to 16 mm
  • Reach high accuracy with no or little re-work after pressing
  • 2 trays with a cycle time of around 60 sec per cycle

  • Maximum operation pressure:
    80 Mpa / 11.600 psi
  • Press force:
    80 MN
  • Punch force:
    18 MN

Quintus

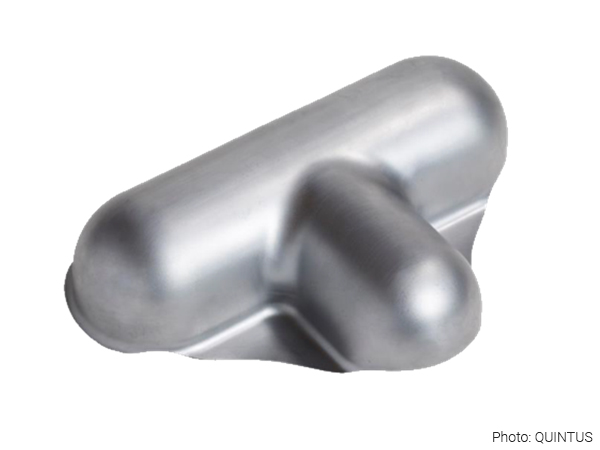

The QUINTUS® Deep Draw Presses are the most versatile of the Quintus Flexform presses in terms of forming capabilities. Not only can they form the same kind of parts as Flexform fluid cell presses, but also complex and deep parts which require a deep drawing function. This is performed with the rigid tool half - a movable punch and blank holder - and by controlling the forming pressure as a function of the draw depth. The circular Flexform unit contains the flexible rubber diaphragm.

Deep Draw Tray

  • Max blank diameter: 1095 mm / 43.1 in
  • Max draw depth: 250 mm / 9.8 in
  • Max punch diameter: 900 mm / 35.4 in

Flexform Tray

  • Max tray depth: 420 mm / 16.5 in
  • Max tray diameter: 1040 mm / 40.9 in
